4" Gravity LED G4 SAE Fog Lights-12-23 Toyota Tacoma

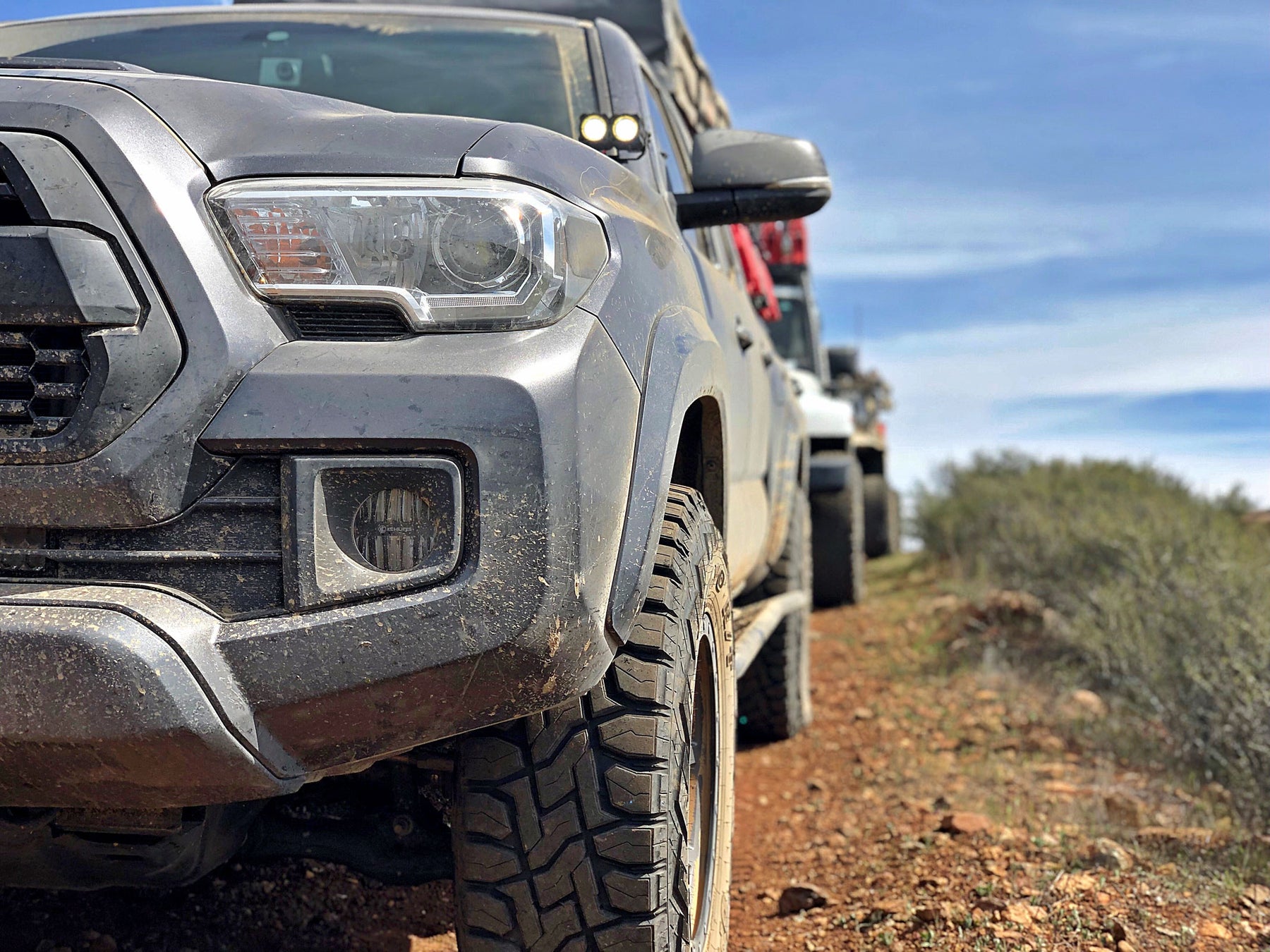

KC's Fog Light Bracket/LED upgrade allows mounting of KC Gravity® G4 LED fog lights to Tacoma's OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper.

• 2 x 10W 4" Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• UV Treated Shatter Resistant Polycarbonate Lens
• Street Legal Fog Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: 866 lm
• Compliance: SAE J583 & ECE-R19
• Lux @ 10 Meters: 150 lx
• Candela: 150,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT)

• Wattage: 10W
• LED Source: CREE XP-G R4
• Color: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP68
• Dimensions: W - 3.94" x H - 3.94" x D - 2.97"

PARTS INCLUDED

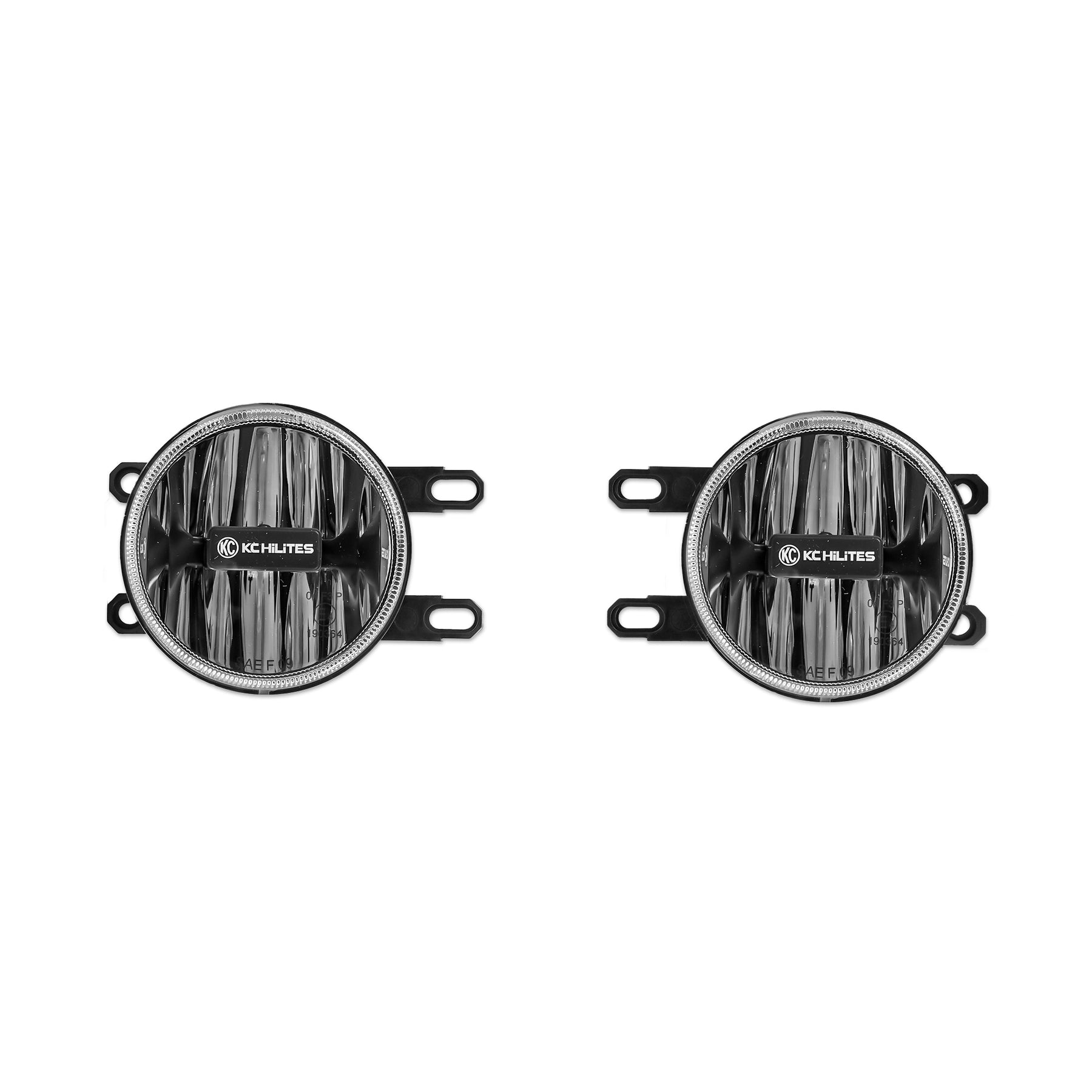

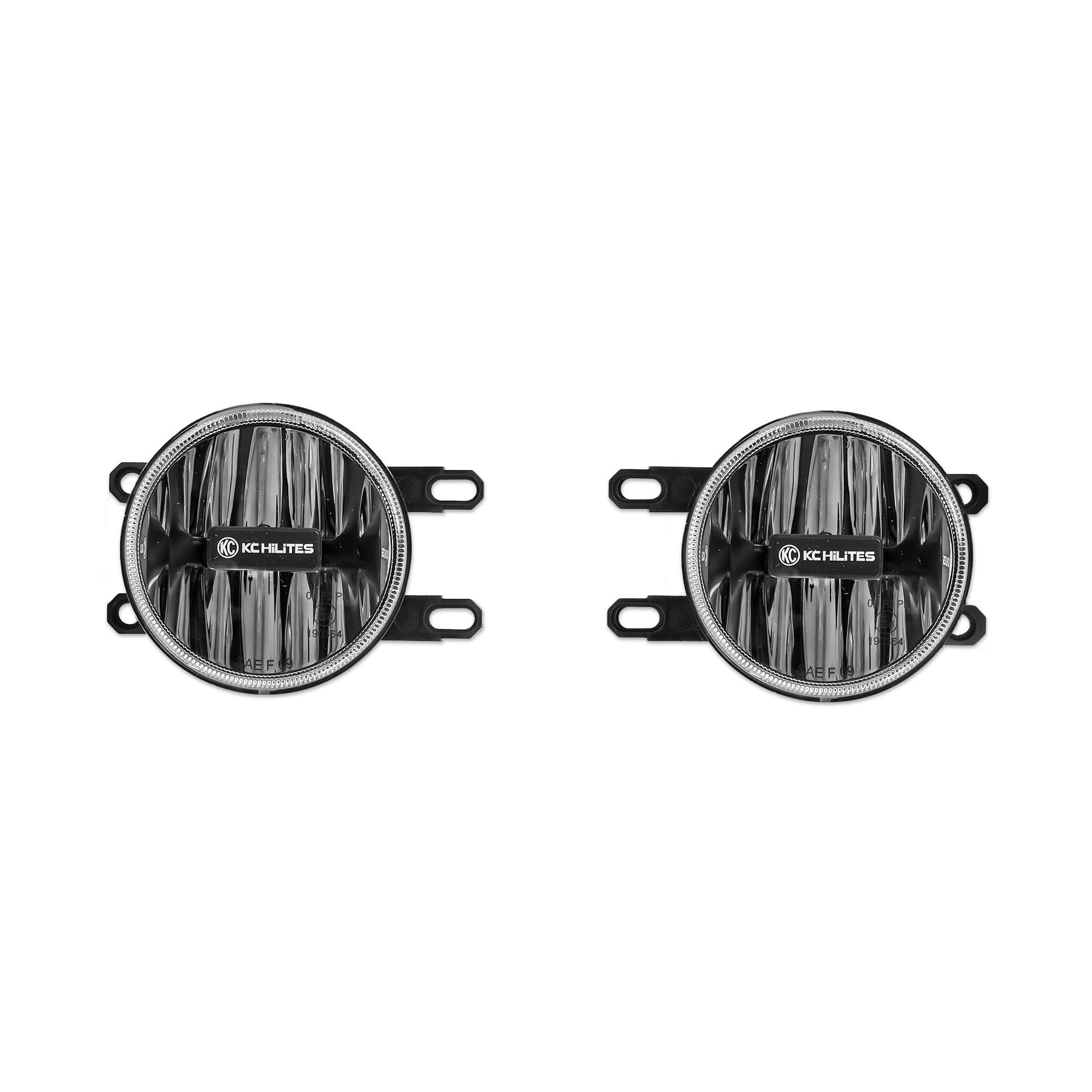

• (2) 10W 4" Gravity® G4 LED Fog lights and Brackets for 12-23 Toyota Tacoma
• H11 Wiring Harness w/ 2-Pin weather-proof connectors

TOYOTA AND LEXUS OE FOG LIGHT MOUNTING

KC's G4 LEDs fits various 06-22 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.

KC's Gravity G4 Toyota LED Fog Light Fits

• 12-23 Toyota Tacoma
• 14-21 Toyota Tundra
• 10-24 Toyota 4Runner
• 06-12 Toyota Rav4
• 13-15 Lexus: IS,ES,GS,RX,LX

GRAVITY® EXTREME OUTPUT AND EFFICIENCY

The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward.

STREET LEGAL FOG BEAM PATTERN

Fog Beam- Provides a low, wide-angle light pattern that increases visibility in conditions like dust, fog, snow and rain.

STRENGTH & DURABILITY

Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.
